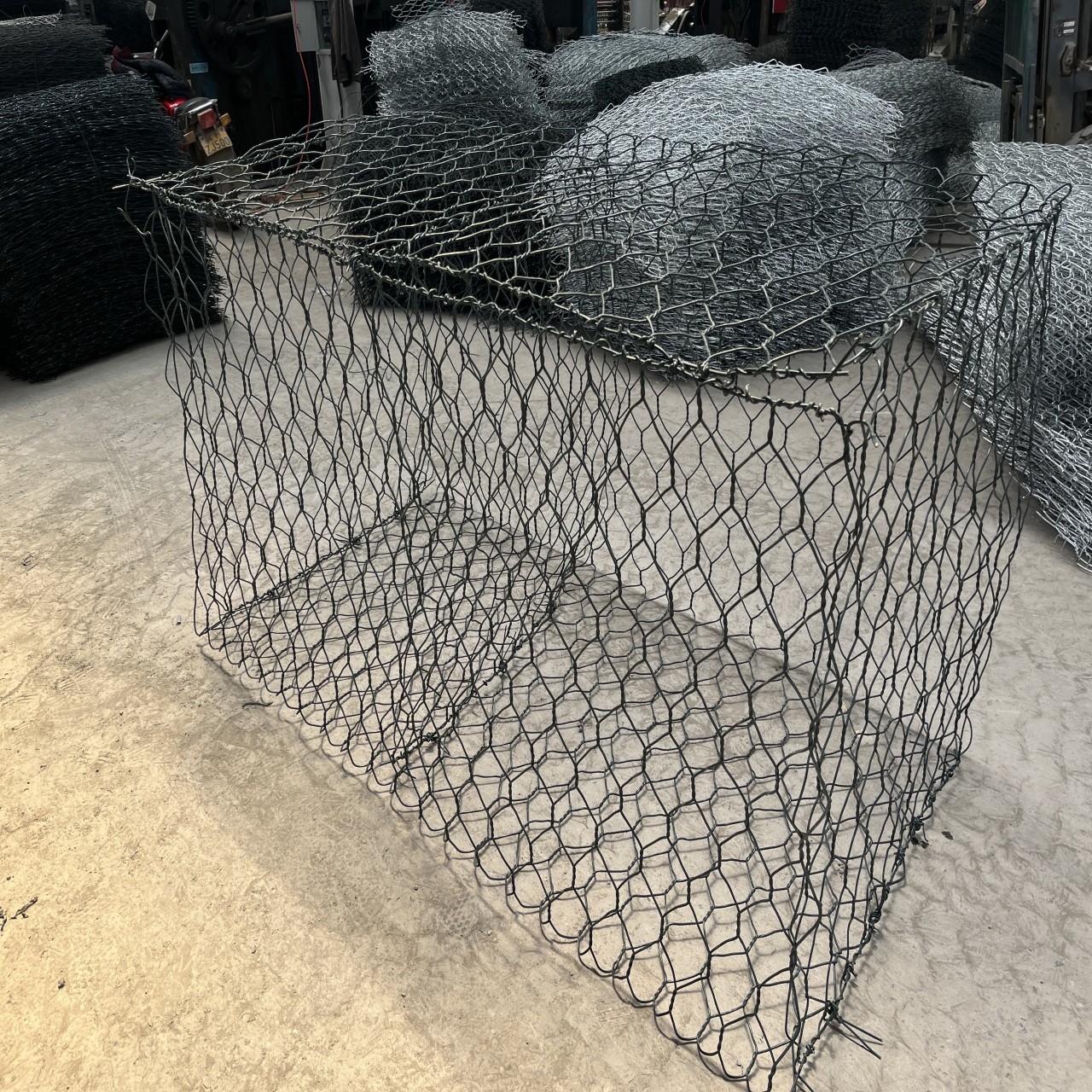

1*1*1M Woven Gabion Basket Stone Cage For River Bank Protection

Brand Name : KN

Model Number : KN-G03

Certification : ISO CE

Place of Origin : China

MOQ : 100 pcs

Price : USD 13-20

Payment Terms : L/C,T/T,Western Union

Supply Ability : 3000000 sqm/month

Delivery Time : 7 days

Packaging Details : Wooden pallets

Product name : Galvanized gabion basket

Wire Diameter : 2.0-2.7mm

Aperture : 60*80;80*100;100*120...

Material : Q195 steel wire mesh

Assembly : Easily Assembled

Key Words : Hot galvanized gabion cage

Contact Now

1*1*1M Woven Gabion Basket Stone Cage For River Bank Protection


Gabion description


HEXAGONAL GABION BASKET is a container that made by weaving the wire into hexagonal mesh. hexagonal mesh gabion box has huge deform ability, so it can be easily amended on site to suit project requirements.mainly used for protecting river and dam from the losing of soil and water. Additional, the twisted structure can supply higher tensile strength to be used in the heavy duty applications.


Specifications

General Specifications
Gabion Box
Wire Diameter
Mesh Hole
Surface Treatment
Tensile strength
Hot dip galvanized
1x1x1m

2.0mm
2.2mm
2.5mm
2.7mm
3.0mm
3.5mm
4.0mm


60x80mm
70x90mm
80x100mm
100x120mm
Electro galvanized

Hot dip galvanized

Galfan coated
(Zinc-5%Al Aluminum)
(Zinc-10%Al Aluminum)

PVC coated


350-550Mpa

40-60g/m2,
220-300g/m2
(heavy galvanized)
2x1x1m
3x1x1m
4x1x1m
5x1x1m
6x2x0.3m
2x1x0.5m
3x1x0.5m
4x1x0.5m
5x1x0.5m
3x2x0.3m
Gabion application: can be widely used in flood controling,retaining wall,river bank protection,slope protection etc.
All sizes can customized according to your request.


Gabion material

Material introduction:
(1) Galvanized steel wire: high quality low carbon steel wire, the diameter of the steel wire2.0MM-4.0MM, the tensile strength of the steel wire is not less than 380Mpa, the surfaceof the steel wire is protected by hot dip galvanizing, the thickness of the galvanizedprotective layer is made according to customer requirements, and the maximum amountof galvanizing can reach 300g/m2.
(2)Zinc-5% aluminum (10% aluminum) -mixed rare earth alloy steel wire: ( also calledGolfan) steel wire, which is an international emerging a new material, corrosion resistanceis more than 3 times that of traditional pure galvanized, the diameter of the steel wire canreach 1.0MM-3.0MM, the tensile strength of the steel wire is not less than 1380Mpa.(3) pVC coated plastic: high-quality low carbon steel wire, a layer of PVC protective layer onthe surface of the steel wire, and then woven into various specifications of hexagonal nets.This layer of PVC protective layer will qreatly increase the protection in the highly pollutedenvironment, and through the choice of different colors, it can be integrated with thesurrounding environment.
